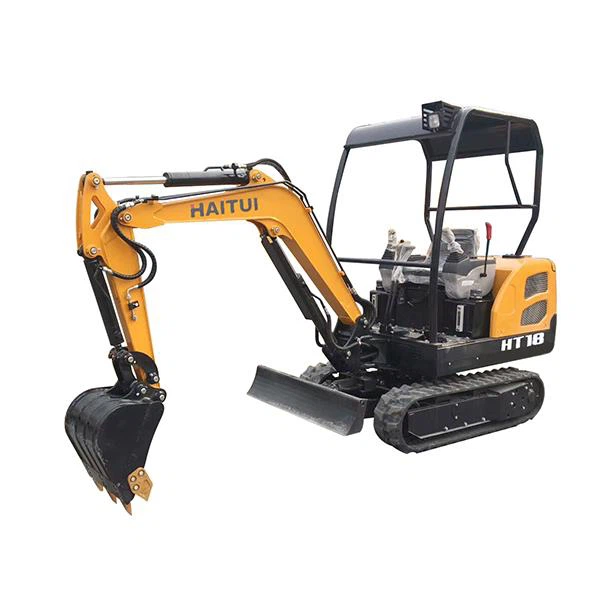

1.8 Ton Mini Excavator
China 1.8 Ton Mini Hydraulic Crawler Excavator
Mini excavators,also called compact excavators or mini diggers,are known for their efficiency and innovation. Used mainly in densely populated urban areas, they have been designed to function efficiently and safely in narrow jobsites.

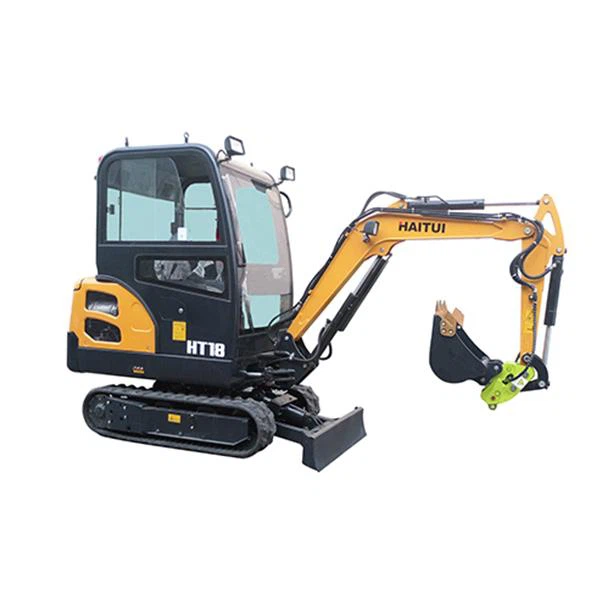

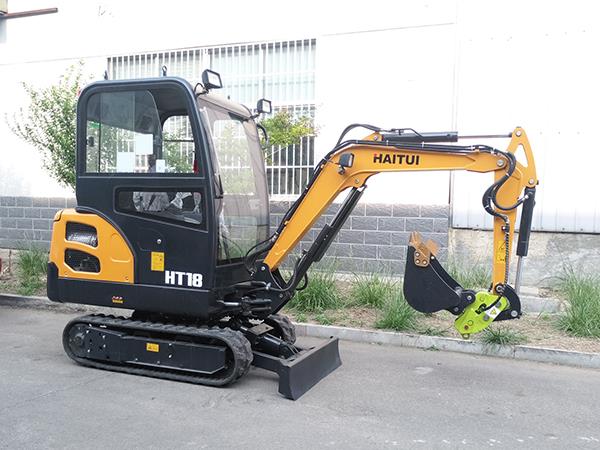

Haitui HT18 mini excavator with 1.8 ton operating weight combines small size with big performance with the highest breakout force in its class.Haitui mini excavators comes attachment ready with auxiliary hydraulic piping that accommodates both one and two-way hydraulic attachments.
|Overall Dimension (L*W*H)||3865*1050*2270 mm|
|Bucket Capacity||0.06 m3|
|Rated Power||18.1 KW|
|System Pressure||16 MPa|
|Max Digging Height||3365 mm|
|Max Dumping Height||2385 mm|
|Max Digging Depth||2050 mm|
|Max Digging Radius||3860 mm|
|Tail Swing Radius||1125 mm|

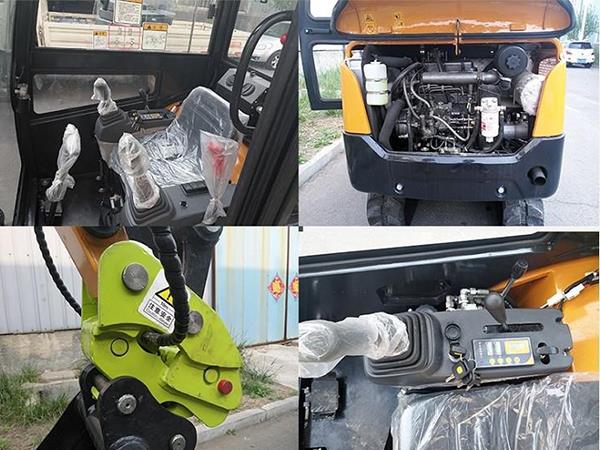

1,China famous Laidong brand engine with 18.1KW.
2,Eaton brand motors
5,Hydraulic joystick control
6,Auxiliary line for attachments

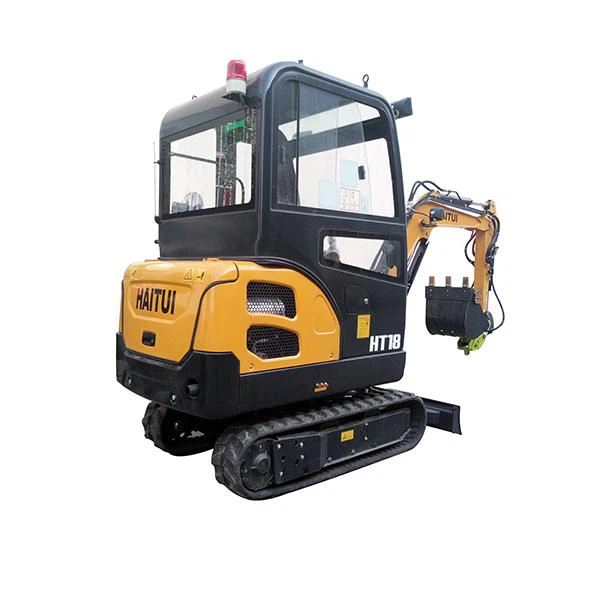

2,Closed cabin with heater

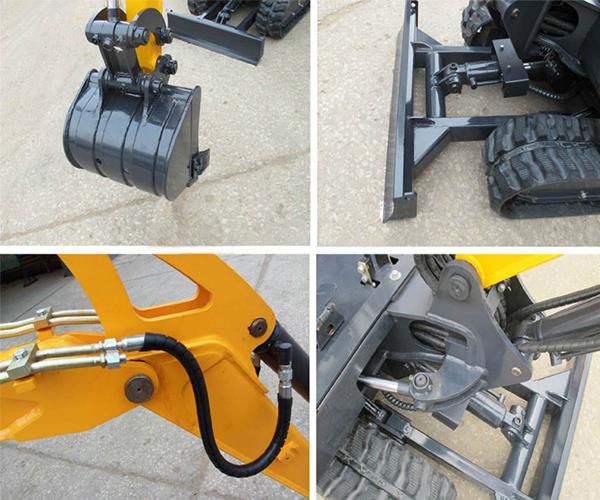

1,Boom side shift function makes it can work in more narrow place and the digging radius is bigger.
2,Width of the machine is only1050mm which makes the machine can cross through a narrow place.
3,Equipped with Auxiliary line for attachment,can be fitted with various attachent,like auger,hammer,wood grapple,thumb bucket and so on.
4,Equipped with Laidong KM385B engine with rated power 18.1KW which is more powerful.
5,Hydraulic Joystick pilot control system makes the operation more smoothly.
6,Safety lock makes it more safe to operator and other people.

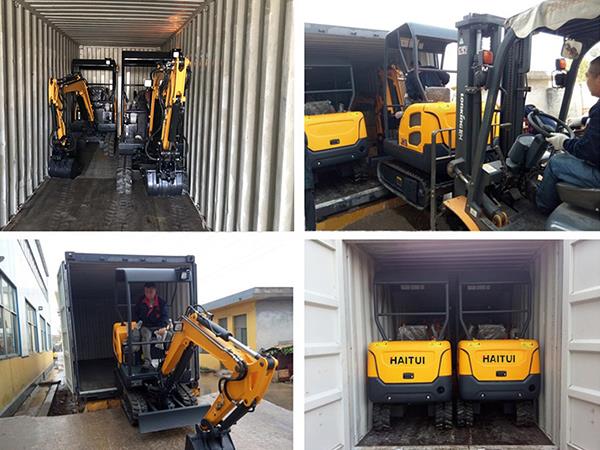

4 units HT18 mini excavatos can be loaded into a 20ft container.
