1.5 Ton Wheel Loader
China CE certificate 1.5ton wheel loader ZL918E

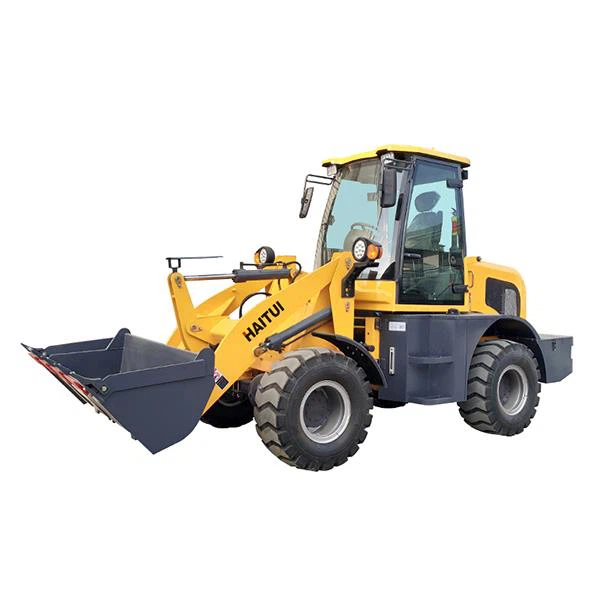

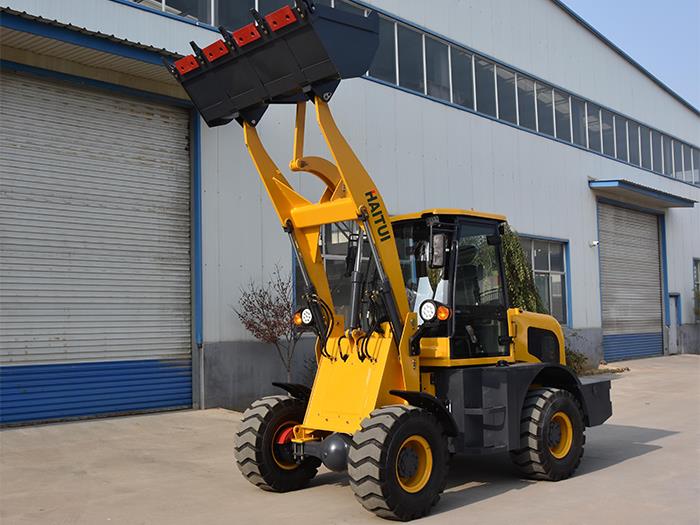

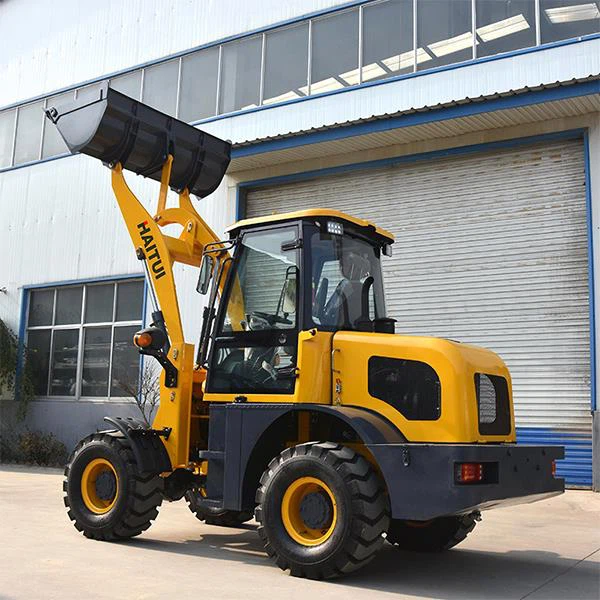

HAITUI 1.5ton mini wheel loader ZL918E is a hot moving Euro type front loader with the feature of higher efficiency,lower fuel consumption and easy operating.New design for cab and structure adopted and looks more attractive.CE certificate approved and Euro 3 emission engine can be installed.It can be widly used at farm work,earthmoving construction works etc.
|Operating Weight (kg)||4050|
|Dimension L×W×H (mm)||5545×1880×2740 mm|
|Loading Capacity (kg)|
|Bucket Capacity (m3)||0.65|
|Engine||Xichai 4DW91-45 / Xinchai A498BT1 (Euro 3)|
|Rated Power (KW)||37KW|
|Wheel Base (mm)||2305|
|Max Lifting Height (mm)||4210|
|Max Dumping Height (mm)||3300|
1,XiChai 4DW91-45 33KW engine or YunNei 42KW equipped on standard.
2,Mechanical Joystick control system.
3,Standard bucket with 0.65m³ capacity.
4,Standard tire size 20.5-16
5,Hydraulic torque convertor and gear transmission F2+R2.
6,Hub reduction axle
9,220v engine heater
1,Euro 3 engine XinChai A498BT1 with 36.8KW.
2,Hydraulic joystick control system or Electric joystick
3,Wider size tubeless tires 400/60-15.5.
6,Various kinds of attachments
1,The new design of the cabin and engine cover makes ZL918E wheel loader more attractive.Different colors can be painted on the machine.

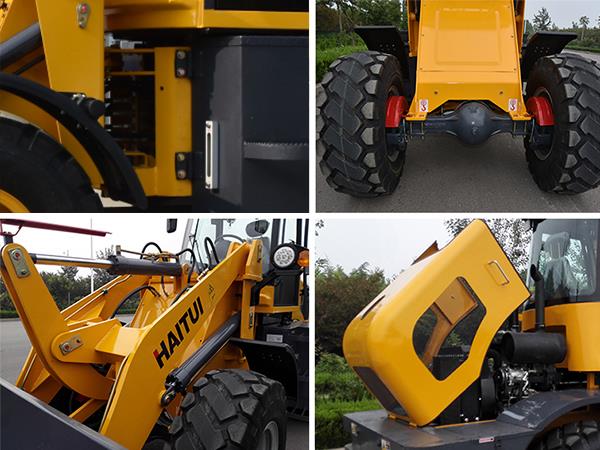

2,The engine cover can be uplift smoothly and it is much easier to check engine parts and do maintainance job.
3,The articulated steering frame can reduce the turning radius and makes the operating more flexible.
4,ZL918E wheel loader can be installed with different size of tyres:Standard size of tyres is 25.5/70-16,bigger tyres size is 400/60-15.5 and solid tyres size is 12-16.

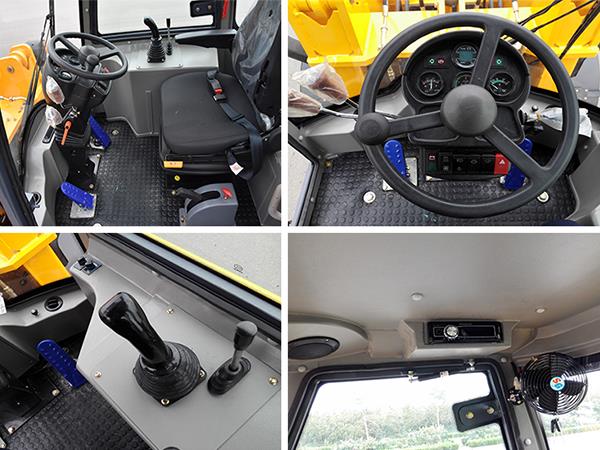

5,Inside the cabin of ZL918E wheel loader is very luxury,equipped with adjustable seat,luxurious dashboard,heating,extinguisher and hammer.Rear view camera and air condition can be optional.
1unit ZL918E wheel loader fit for a 20ft container and 2units fit for a 40HQ container.Before delivery our workers will recheck the spare parts and clean the loaders completely.
