Double Drum Vibratory Compactor Roller

Products name: 3 ton doube drum vibratory compactor roller
Type number: HDR3000
Weight: 3 ton
Product Details

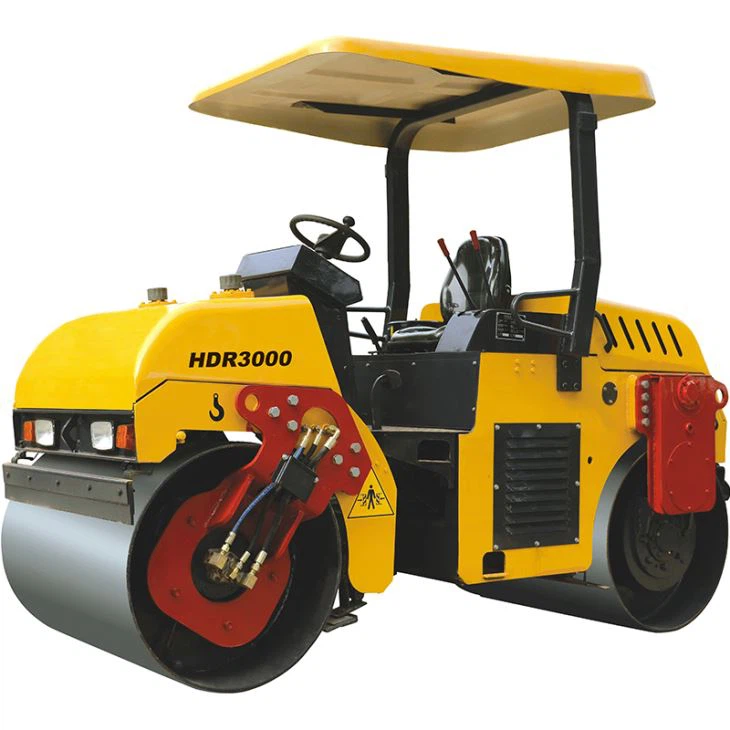

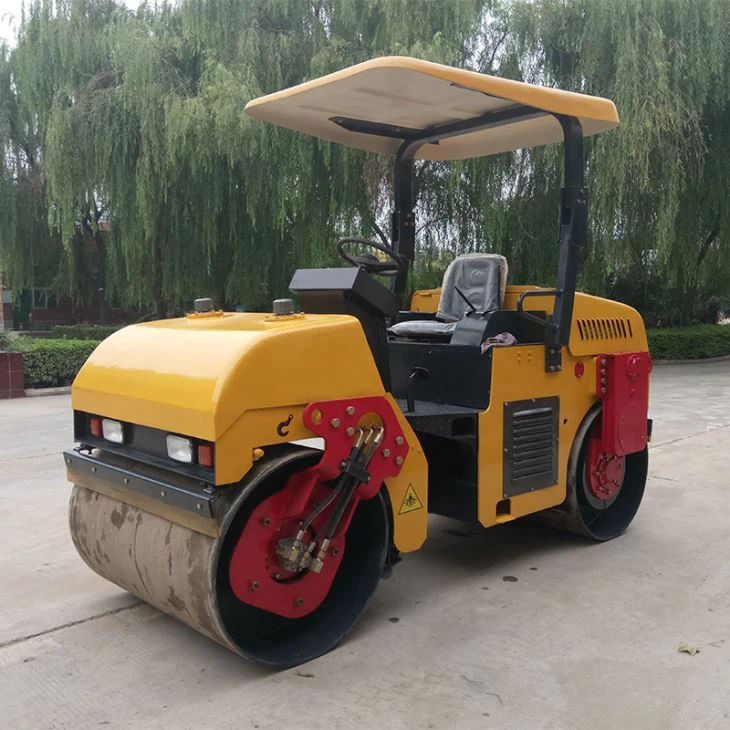

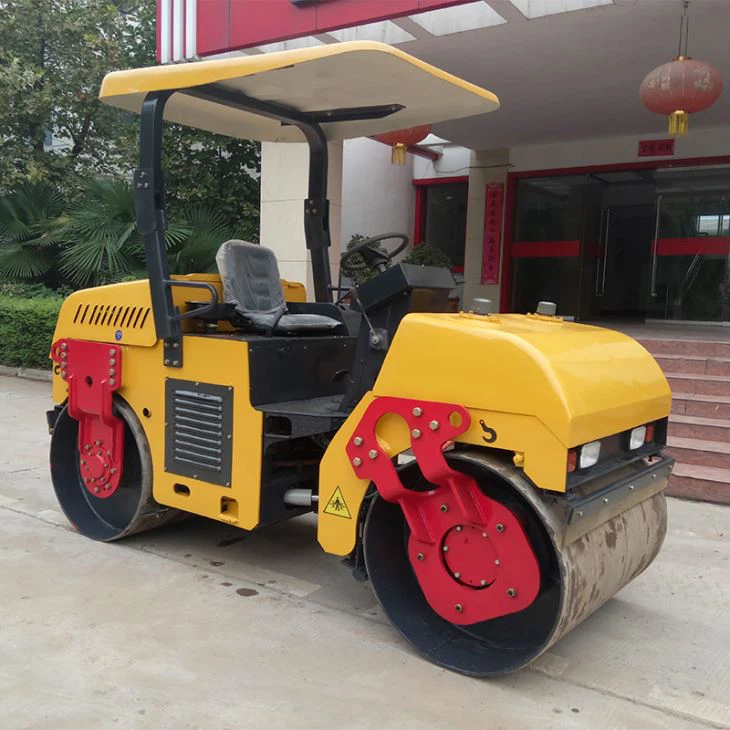

3 ton doube drum vibratory compactor roller

Products Introduction

Our product is a compactor type engineering vehicle used to compact soil, gravel, concrete, or asphalt in the construction of roads and foundations. Similar ones are used also at landfills or in agriculture. It is a ride on type double drum vibratory road roller.


Main Parameters

Model

HDR3000

Operating Weight

3000 kg

Exciting Force

35 KN

Vibration Frequency

50 HZ

Drum Width

1090/780 mm

Static Liner Load

120/153 N/cm

Travel Speed

2.4 / 5 / 7.8 Km/h

Grade Ability

20%

Min Turning Radius

4500 mm

Wheelbase

2050 mm

Min Ground Clearance

250 mm

Diesel/Hydraulic tank Capacity

60/60 L

Diesel Model

ZN385Q

Rated power

21 KW

Overall Dimension(L×W×H)

2880×1275×2650 mm


Main features

1,It adopt Changchai ZN385 water cooled diesel engine,which can provide enough power and more efficent.

2,Vibrating and steering both controlled by hydraulic.

3,Exciting force up to 35KN which is about 3.5ton to ensure the compaction function.

4,The brake system was upgraded to be oil brake and new gearbox is more efficient and faster speed.

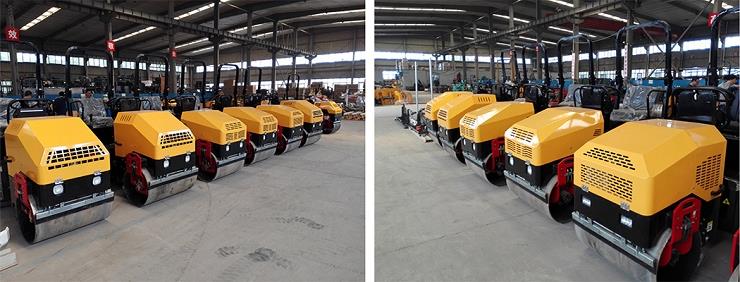

Workshop view

Haitui machinery company was established in 2010 and we mainly engaged in producing and exporting construction machineries including road rollers or compactor rollers,loaders,excavators and bulldozers.Our product can reach more than hundred units one month.

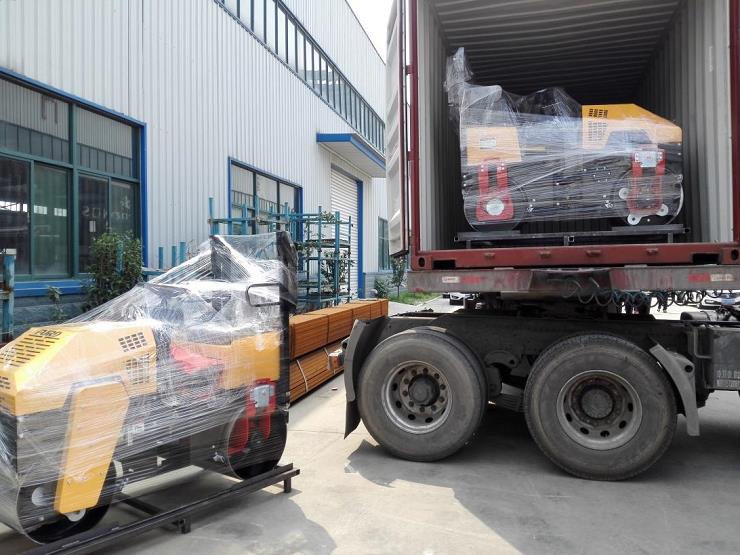

Packing and Delivery

3 units can be loaded into a 20ft container and will be fixed well by belt.



Hot Tags: double drum vibratory compactor roller, China, suppliers, manufacturers, factory, cheap, with CE
