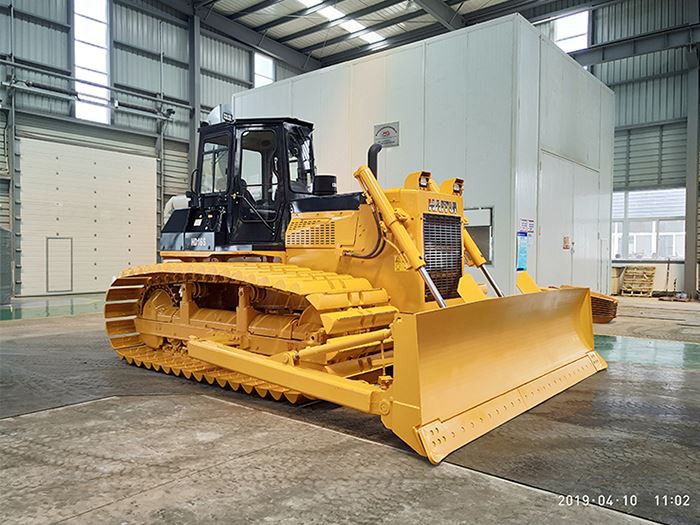

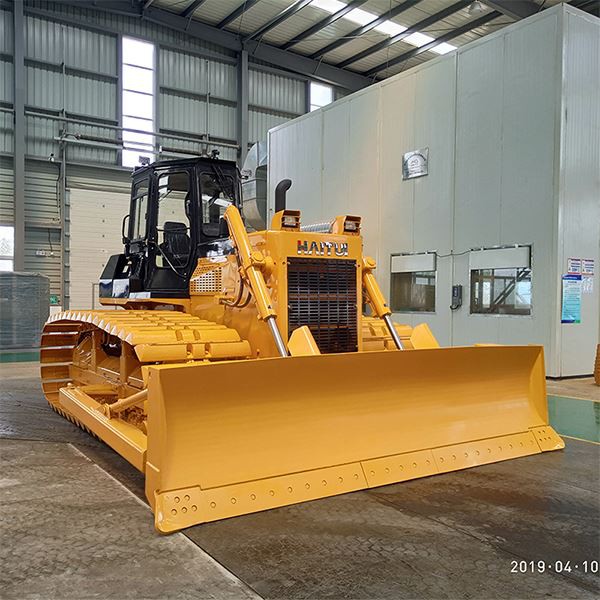

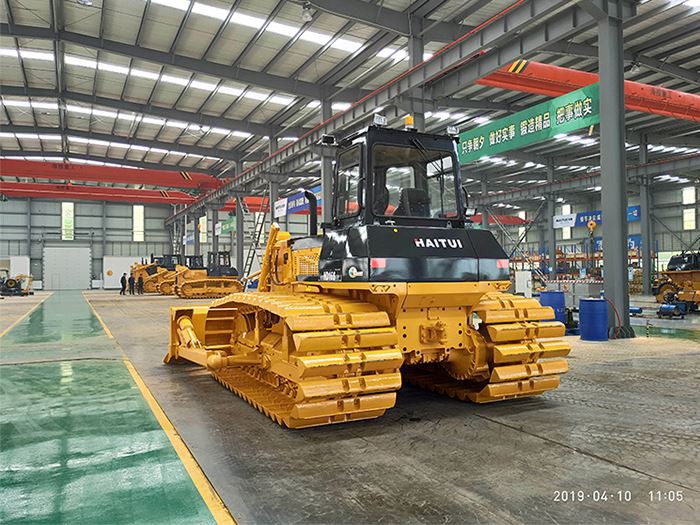

Crawler Wetland Bulldozer HD16S

China Wetland Bulldozer Haitui HD16S for Wetland and Swamp

Introduction

HD16S Bulldozer is 178 horsepower track-type dozer with extended triangle wetland tracks,power shift drive,semi-rigid suspended and hydraulic controls.It is designed especially in response to wetland working conditions and can work in the soft and muddy soil conditions highly efficent.

Main Specifications

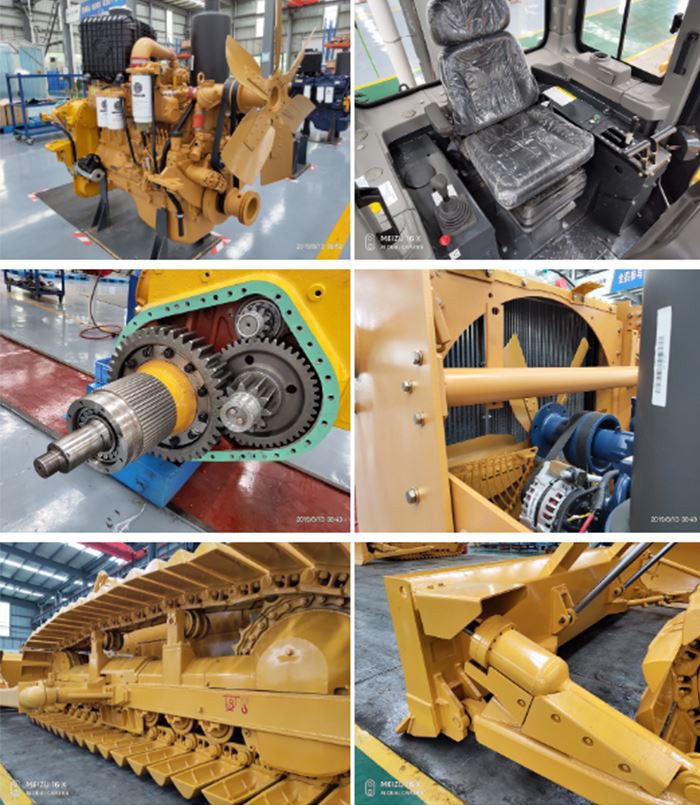

Main Features

1,Haitui bulldozers come equipped with a Weichai WD10G178E25 or Cummins NT/NTA855 series engine.These engines are purpose-built to produce high torque coupled with superior reliability,performance and more importantly,low fuel consumption.

2,The powershift transmission box is planetary gears type,by operating hydraulic control valve for traveling forward and reverse.It features planetary gears,multi-disc clutch and hydraulically applied forced lubrication.

3,As the last part of the transmission system,the final drive is one of the most critical components of the bulldozer.we have opted for a two stage spur gear heat treated with Japan technology to withstand relentless wear and tear,and a fully lubricated final drive system for improved life in abrasive conditions.

4,New hexahedral cab with large internal space and wide field of view,excellent vibration and well-damped cabin provides a comfortable working enviroment.Well-displayed instrument panel equipped for easy monitoring of all functions on board.

5,The closed system keeps the tank pressure at a specific value, which can increase the evaporation temperature and heat dissipation efficiency of the cooling water.

6,The undercarriage is the most frequently worn out components on bulldozer.Therefore,a more durable undercarriage means lower running cost.Haitui bulldozers adopt Japan Komatsu heat treatment technology on this undercarriage parts and equipped with distinctive lubricated track trains,which greatly improve the service life of undercarriage system.

Applications

HD16S wetland type bulldozer with 1100mm extended width triangle tracks reduced the ground pressure to be 0.027Mpa and widely used at soft and muddy soil conditions like wetland and swamp.

Packing&Shipping

Shipping by RO-RO or Flat Rack Container

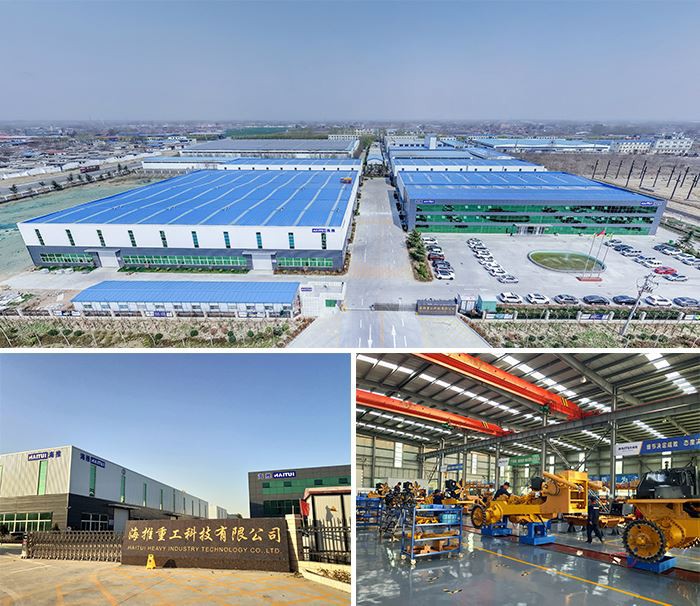

Our Factory

Haitui Heavy Industry Machinery Co.,Ltd established since 2010,is a leading manufacturer of crawler bulldozers unparalleled in price,quality and performance.

Haitui machinery factory located in economic and development zone,Jining city,Shandong province.It covers around 40000㎡ and have more than 100 workers.With the strong technical support of Haitui Research & Development team,Haitui machinery is manufactured with international standard of quality and safety to withstand even the most extreme climatic conditions and rugged terrains.One year or 2000 hours long time warranty and excellent after-sales service ensure the nice experience.

Today the company's clients spans over 50 countries.
