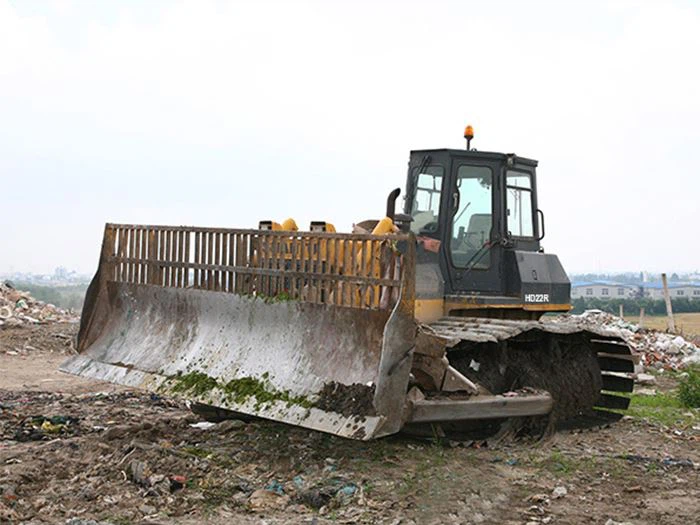

Bulldozer For Waste Management
Type Number:HD22R
Weight:26 Ton
Bulldozer For Solid Waste Management
Introduction
As long as people have been living in settlements and residential areas,garbage or solid waste has been an issue.Landfill is the most common management strategy for municipal solid waste,usually provide the most economical option for disposal of nonrecyclable refuse.
Waste handling bulldozer is an essential heavy equipment on solid waste management.When you are operating in a landfill,moving waste from one location to the next requires quick operations,top safety measures and incredible weight capacities,our waste handling bulldozer HD22R will be your best choice.
Main Specifications
| Model | HD22R |
| Overall Dimension | 6290*4365*3395mm |
| Operating Weight | 26000kg |
| Engine Model | CUMMINS NT855-C280S10 |
| Rated Power | 175KW/1800rpm |
| Displacement | 14.01L |
| Max Torque | 1030 N.m@1300rpm |
| Track Shoe Width | 910mm |
| Track Gauge | 2250mm |
| Ground Pressure | 0.041Mpa |
| Numbers of Track Rollers | 8 pcs/each side |
| Numbers of Carrier Rollers | 2 pcs/each side |
| Max Hydraulic Pressure | 14Mpa |
| Hydraulic Displacement | 262L/Min |
| Straight Blade Size | 4365*1887mm |
| Blade Capacity | 12m3 |
| Forward Speed | FI:0-3.6km/h F2:0-6.5km/h F3:0-11.2km/h |
| Reverse Speed | R1:0-4.3km/h R2:0-7.7km/h R3:0-13.2km/h |
Main Features

1,HD22R bulldozer is a powerful landfill dozer that will provide extreme performance and productivity,suitable for work in the harshest of waste landfill environments. The specialized design was tested and refined in large-scale landfill operations.
2,Cummins NT855-C280S10 engine provide powerful energy and reliable performance.
3,The wide-track or low-ground-pressure-track configured bulldozer and the blade with trash rack that increases blade capacity to 12 cubic meters to keep the dozer working efficiently in large-scale landfill operations.
Details

Applications
HD22R bulldozer are widely used on municipal solid waste management,it is an essential landfill equipment that will provide extreme performance and productivity in landfill applications.
