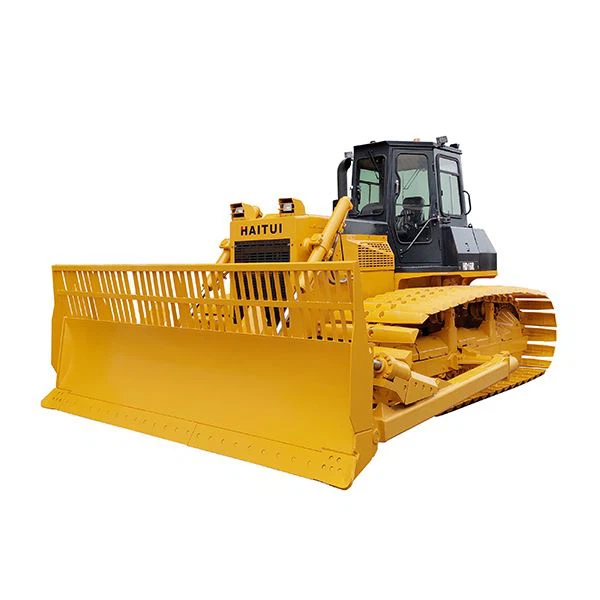

Waste Handling Bulldozer
Type Number:HD16R
Weight:18.6 Ton
China Waste Handling Bulldozer HD16R for Landfill Application
Introduction
We know that the waste industry is tough on equipment as the environment is abrasive and corrosive, and underfoot conditions may be unstable.You need continued performance to withstand your most challenging environments,whether you're operating in a landfill,recycling center or transfer station.
HD16R waste handling bulldozer is suitable for work in the harshest of landfill conditions. It is a powerful landfill dozer that will provide extreme performance and productivity,as well as protection from the unique working conditions of landfill.
Main Specifications
| Model | HD16R |
| Overall Dimension | 5262*4150*3074mm |
| Operating Weight | 18600kg |
| Engine Model | Weichai WD10G178E25 |
| Rated Power | 131KW/1850rpm |
| Displacement | 9.726L |
| Max Torque | 765 N.m@1300rpm |
| Track Shoe Width | 950/1100mm |
| Track Gauge | 2300mm |
| Ground Pressure | 0.027Mpa |
| Numbers of Track Rollers | 7 pcs/each side |
| Numbers of Carrier Rollers | 2 pcs/each side |
| Max Hydraulic Pressure | 14Mpa |
| Hydraulic Displacement | 243L/Min |
| Straight Blade Size | 4150*1580mm |
| Blade Capacity | 8.3m3 |
| Forward Speed | FI:0-3.29km/h F2:0-5.82km/h F3:0-9.63km/h |
| Reverse Speed | R1:0-4.28km/h R2:0-7.59km/h R3:0-12.53km/h |
Main Features

1,HD16R waste handling bulldozer equipped with Chinese famous Weichai WD10G178E25 engine,It is a powerful waste dozer,operating at a rated 178 horsepower.It designed with seals and guarding that are critical to the life of our machine investment.
2,The wide-track or low-ground-pressure-track configured bulldozer and the blade with trash rack that increases blade capacity to 8.3 cubic meters to keep the dozer working efficiently in large-scale landfill operations.
3,Debris deflectors at the rear that redirect material away from the chassis and protects the engine, cooling package, tanks, and other critical components of the dozer.
4,Features a sealed cab that helps keep dust and other materials out of the operating environment as well as powerful air conditioning and recirculation to ensure a safe and healthy workspace.

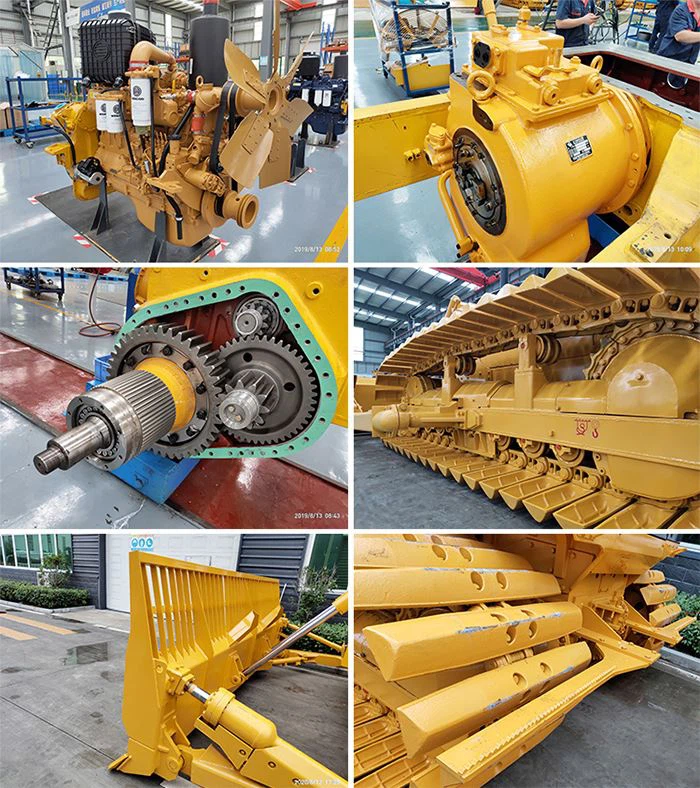

More Details

Applications

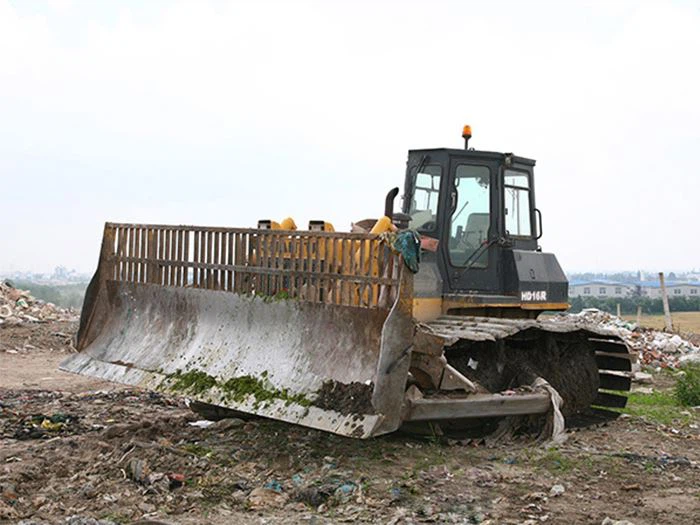

The waste handling bulldozers are built for durability and longevity in the harshest landfill conditions.HD16R bulldozer is a powerful landfill dozer that will provide extreme performance and productivity in landfill applications.
