3.5 Ton Mini Excavator

Name:3.5 Ton Mini Excavator
Model:HT35
Self Weight:3500kg
Product Details

3.5 Ton Mini Crawler Excavator with Yanmar engine


Introduction

3.5 ton mini excavator or compact excavators are just the right size to accomplish small to medium jobs that require moving or digging dirt, sand, gravel, rocks and rubble. They are great for jobs with limited working space or narrow jobsites such as foundation repair.



Main Specifications

Overall Dimension (L*W*H)4600*1650*2260 mm
Bucket Capacity0.18 m3
EngineChangchai ZN490 / Yanmar 3TNV88
Rated Power34KW / 19.6KW
System Pressure16MPa
Max Digging Height4730 mm
Max Dumping Height3175 mm
Max Digging Depth3135 mm
Max Digging Radius4965 mm
Tail Swing Radius1250 mm

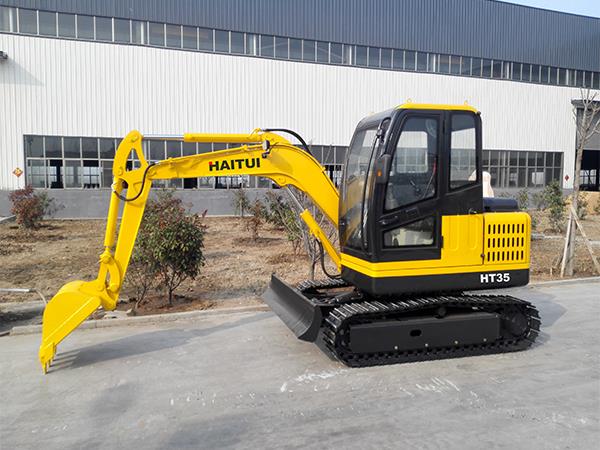

3.5 Ton Mini Excavator (8)

Standard Configuration

1,China famous Changchai ZN490engine with 34KW.

2,Italy Comer brand motors

3,Steel track

4,Closed cabin

5,Hydraulic joystick control

6,Auxiliary line for attachments


Options

1,Rubber track

2,Canopy

3,Quick hitch

4,Air condition

5,Different attachments


Details


3.5 Ton Mini Excavator details (1)


HT35 3.5 ton mini excavator standard equipped with steel track,closed cabin,hydraulic joystick control system and Italy Comer brand motors.Yanmar 3TNV88 engine can be equipped for option. It is multi-functional with many attachments can be installed such as breaker hammer,auger,wood grapple,ditcher etc.

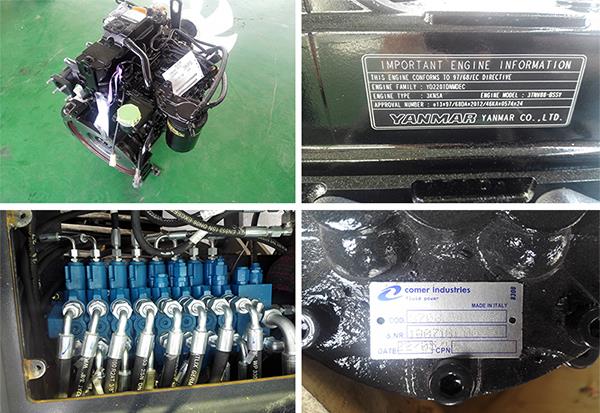

3.5 Ton Mini Excavator details (2)


Applications

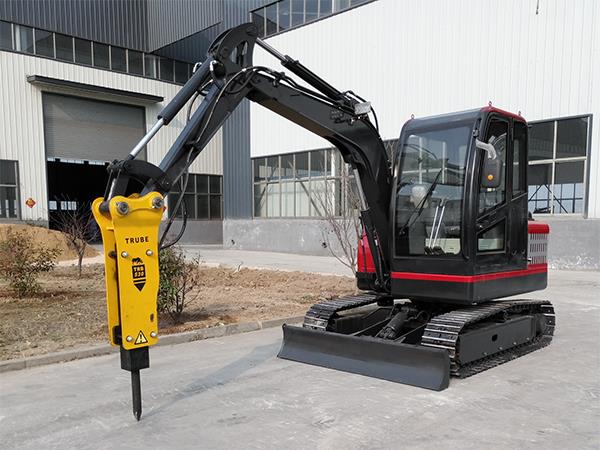

3.5 Ton Mini Excavator (7)

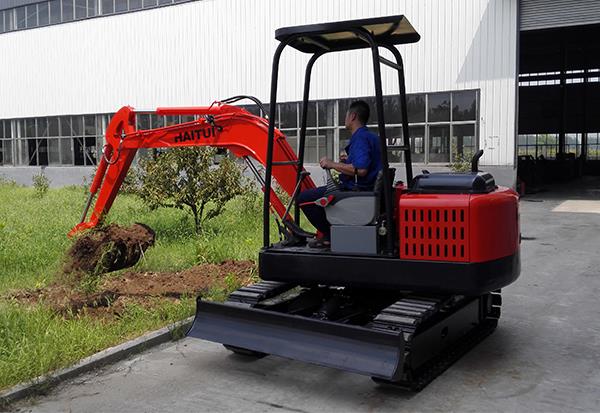

3.5 Ton Mini Excavator (9)


Shippment

2 units HT35 mini excavators can be fit for a 20ft container.

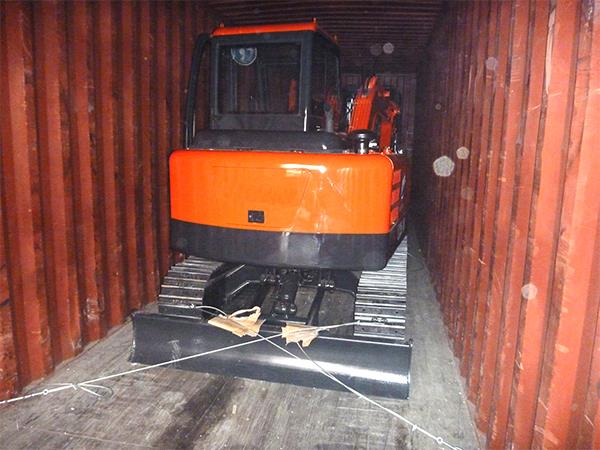

3.5 Ton Mini Excavator loading
