2.5ton Front End Loader

Name:2.5ton Front End Loader
Model:ZL932
Rated Load:2.5ton
Product Details


2.5ton front end loader ZL932 for construction

Introduction

ZL932 front end loader or front loader,is a mid-size 4 wheeled drive wheel loaders with 2.5ton loading capacity.It equipped with 76KW powerful engine and large scoop,which supply big strength for loading and lifting.It is widly used in construction, waste management or mining applications.

2.5ton front end loader 05


Specifications

Technical Specifications

Operating Weight

6500 kg

Overall Dimensions L×W×H

6200×2235×2940 mm

Bucket Capacity

1.3 m³

Rated Load

2500 kg

Max Speed

28 km/h

Standard Tire Size

16/70-24

Wheel Base

2450 mm

Wheel Tread

1650 mm

Engine Model

YUNNEI 38GBZ / CUMMINS 4BT3.9-C100

Rated Power

76 KW     /   74KW

Max Dumping Height

3750 mm

Min Turning Radius

5200 mm

Type of Transmission

Hydraulic Transmission box, F4+R4

Brake Control

Air Over Hydraulic Disc Brake On 4 Wheels

Operating Control

Mechanical / Hydraulic Joystick


Features and Details

1,A large and luxury closed cabin gives operator more comfortable driving condition.Adjustable seat and luxury dashboard,radio,fans,breaker etc.

2,Strong frame and heavy counterweight makes the front end loader more stable.The door of the engine cover is at side and very convenient to do maintenance.

3, ZL932 front end loader standard equipped with a powerful YUNNEI 38GBZ engine (76KW) and CUMMINS 4BT3.9-C100 with rated power 74KW can be installed for option.

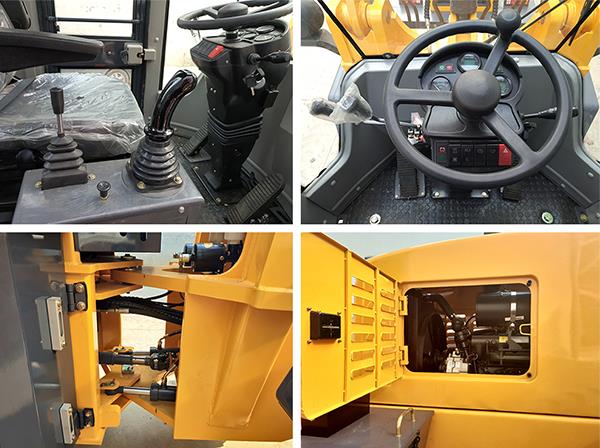

2.5ton front end loader 07


The application

ZL932 front end loader can be equipped with quick hitch and attached various kinds of attachments such as 4 in 1 bucket,pallet fork,snow blade,wood grapple,grab bucket,road sweeper etc,it is multifunctional to be used at construction project,road construction and so on.

2.5ton front end loader 06



Delivery

2 units ZL932 front end loaders can be loaded into one 40HQ container and the attachments will be fixed well by the belt.


Company Introduction

Haitui Machinery company established in 2010 and engaged in manufacturing and exporting bulldozers and wheel loaders more than 7 years,including skid steer loaders and backhoe loaders.Our factory total 15000㎡ with advanced and morden workshops and equippments.More than hundred experience workers and engineers provide best service for all of our customers and production capacity can reach more than hundred units one month.
