3 Ton Wheel Loader

Name: 3 ton Wheel Loader
Model: ZL936
Rated load:3 ton
Product Details


3 ton wheel loader ZL936 with CE

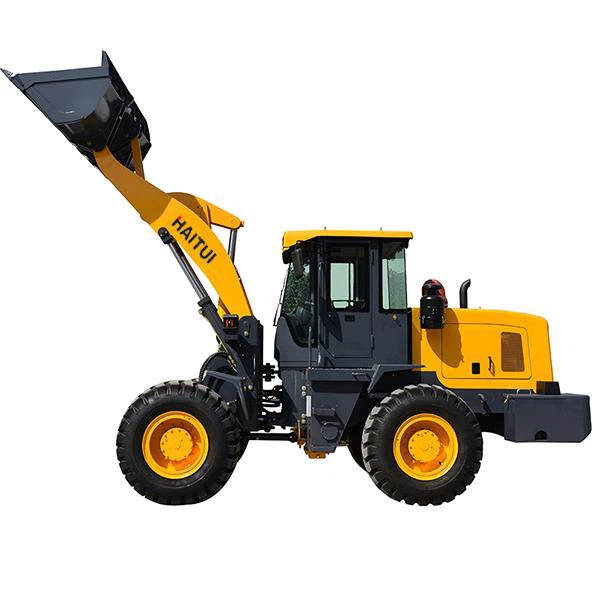

Product Image

3 ton wheel loader 05.jpg


Main specifications


Technical Specifications

Operating Weight

10000 kg

Overall Dimensions L×W×H

7290×2420×3220 mm

Bucket Capacity

1.8 m³

Rated Load

3000 kg

Max Speed

37 km/h

Standard Tire Size

17.5-25

Wheel Base

2750 mm

Wheel Tread

1850 mm

Engine Model

Yuchai YC6J125Z-T20 / DEUTZ WP6G125E22

Rated Power

92 KW

Max Dumping Height

2990 mm

Min Turning Radius

5131 mm

Type of Transmission

Hydraulic Transmission box, F2+R2

Brake Control

Air Over Hydraulic Disc Brake On 4 Wheels

Operating Control

Mechanical / Hydraulic Joystick





Configuration and Features

1, It is equipped with Yuchai or Deutz engine and mature Shantui hydraulic torque converter.The engine features high power reserve,large torque and strong power,which makes it easy to break and lift hard materials.



2, The 360°full view cab with flat glass provides the operators with a comfortable operating environment and excellent visibility.The instrument panel provides operator with easy access to monitor the loader.The steering column can be adjusted backward and forward and the hydraulic joystick makes the operation more smoothly.



3, Articulated steering structure with small turning radius makes it competent for narrow space application.

4, The air filter can get rid of 99.9% of the particles in the air.The use of large capacity pre-filter extends the clean and replace interval of filter.

5,The side opening hood provides larger space for maintenance.

2.5ton front end loader 07


Our Service

1. OEM Manufacturing welcome: Customer brand, Color...
2. Spare parts in stock.
3. We will reply you for your inquiry in 24 hours.
4. Factory visiting, pre-shipment inspection, training.

5. Purchasing agent for related machines.
