CE Approved 1.5 Ton Compact Articulated Wheel Loader ZL918A

Introduction

Haitui compact wheel loader series has been designed with functionality and easy manoeuvrability in mind. Model ZL918A compact wheel loader have a low centre of gravity and a large counterweight to provide excellent stability. It equipped with a high-powered engine for powerful digging and a smooth and precise operation.

Main Specifications

ITEM	ZL918A
Operating Weight (kg)	4050
Dimension L×W×H (mm)	5545×1880×2740 mm
Loading Capacity (kg)	1500
Bucket Capacity (m³)	0.65
Tires	20.5/70-16
Engine	Xichai 4DW91-45 / Xinchai A498BT1 (Euro 3)
Rated Power (KW)	33 / 36.8
Max Torque (N.m)	195
Max Speed (Km/h)	25
Wheel Base (mm)	2305
Max. Traction Force (KN)	49
Max. Breakout Force (KN)	48
Max Lifting Height (mm)	4210
Max Dumping Height (mm)	3300
Min Turning Radius (mm)	4950
Transmission	Hydraulic Torque Convertor
Gear Shift	F2+R2
Axle	Hub Reduction Axle
Brake System	Air over hydraulic oil brake on 4 wheels

Main Features

1,To meet Europe market emission request,model ZL918A compact wheel loader can be equipped with Euro 3 engine Xinchai A498BT1,which is more environmental friendly.

2,The articulated structure and compact turning radius makes ZL918A compact wheel loaders ideal for working in confined spaces, especially in farm works.4-wheel drive improved the manoeuvrability.

1.5ton compact wheel loader (6)

3,The interior cab version provides a quiet working environment, thanks to rubber-mounted hydraulics, sealed operator frame and low-noise engine.

4,A compact wheel loader is often portrayed as a multi-function animal and there are a wide variety of attachments that make it so,while our optional quick hitch makes attachment changes easy and efficient.

Packing & Shippment

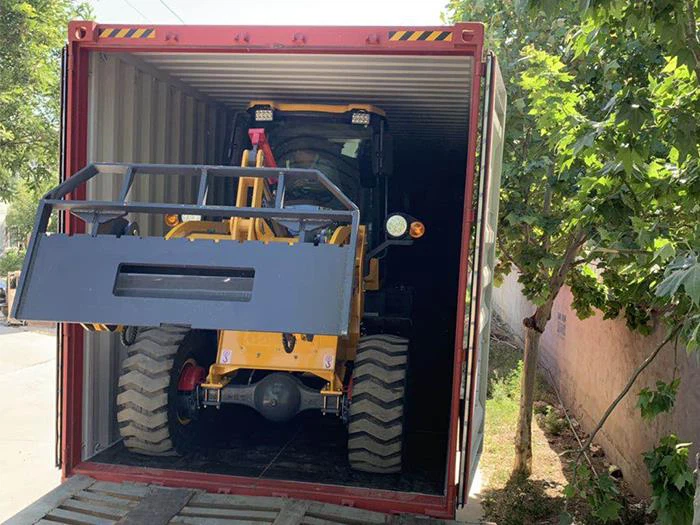

1 unit ZL918A compact articulated wheel loader will fit for a 20GP container with cabin removed while 3 units can enter a 40HQ container directly.

1.5ton compact wheel loader (11) 1.5ton compact wheel loader (9)
